Horseshoe Magnet 25,4 mm x 28,5 mm x 8 mm, school Magnet made of AlNiCo5 red coated - holds 2,6 k

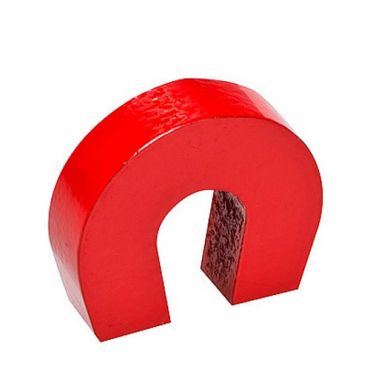

Alnico Horseshoe Magnet 25,4 x 28,5 x 8 mm Red AlNiCo - holds 2,6 kg

The horseshoe magnet is universally recognized as a symbol for magnets and magnetism

great for teaching children the difference between the north and south poles

"Over 300.000 satisfied customers"

The horsehoe magnet is produced of the material Aluminium Nickel Cobalt that makes it able to operate under temperature up to 180 degrees Celsius. The north and south pole of the horseshoe magnet resemble the ordinary rod magnet but since this model is produced with a slightly curved dimension the poles end up laying on the “surface”.

Our Horseshoe magnets are predominantly used in classroom settings as they are great for teaching children how magnetic fields operate and the difference between the north and south poles. The horseshoe magnet is universally recognized as a symbol for magnets and magnetism. The design allows for two separate poles to clearly display the difference between the north and south pole and the attract/repel reactions when exposed to another magnet.

Product Information

• Alnico Horseshoe Magnet 25,4 x 28,5 x 8 mm Red AlNiCo - holds 2,6 kg
• height: 28.6 mm
• width (outside): 25.4 mm
• leg width: 8 mm
• Color: painted red
• Material: AlNiCo
• Temperature: up to 180° Celsius
• North and South Poles at opposite ends
• Adhesive force: 2.6 kg
• Epoxy paint coat the popular iconic horseshoe magnet

Details

• Quality grade ANC5 is used to produce this magnet
• Curved dimension
• Max temperatur: 180 °C
• Certifications: RoHS, REACH
• Surface: Lacquered red
• Grade: ANC5

Magnet force

The holding forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Classy look and high-quality material

Thanks to the elegant look of our Alnico Horseshoe Magnet, they can be placed in a clearly visible position.

ROHS Policy

This article complies with the European RoHS directive (2002/95/EG - RoHS - Restriction of Hazardous Substances) for the restriction of the use of certain hazardous substances in electrical and electronic equipment. Corresponds to the European RoHS directive, is PVC and plasticizer-free and REACH-compliant - classified according to the German flame retardant standard DIN 4102 / B1
