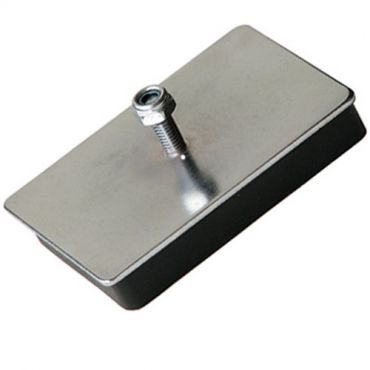

Magnetic Holding Pad MagPad 79 mm x 53 mm x 12mm Rubber Coated - holds 10 kg
the 'Mag Pad' is Rubber coated to increase friction and reduce corrosion
Typical use is lighting systems, magnetic brackets, car roof taxi signs, antenna clamp systems, lighting fixtures, security gates, temporary signage
"Over 300,000 satisfied customers"
Magnetic Pad, MagPad, Rubber Coated Magnetic Mounting Pad, Car Roof Top Magnets, through hole and threaded stud magnetic pads. Magnetic Pad (commonly known as ‘MagPads’ or Car Roof Top Magnets) are used for securing objects to magnetic surfaces. Types of magnetic mounting pad: Threaded stud and through hole magnetic pads, They come in two forms; through hole and threaded stud. A magnetic mounting pad is a magnet that holds objects made of non-ferromagnetic materials, such as plastic car roof signs, to a ferromagnetic material like a car roof. Magnetic pads are particularly useful for these tasks due to the amount of shear strength they have. Shear strength refers to the magnet’s ability to resist any forces trying to make the magnet slip from the ferromagnetic surface.
Rubber coating on a threaded stud or through hole magnetic mounting pad, Magnetic mounting pads have a high shear strength due to their rubber coating, Magnetic mounting pads are predominantly used for advertising, as the adverts can be easily changed. This is because they can securely hold the sign for an extended period of time, but because of the magnetic capabilities, it can be easily removed by the user when they need to. This is also known as a taxi magnet due to its role of holding taxi signs on the roof of a taxi”.
A unique product, the ‘mag pad’ is ideal for fixing rooftop signs to vehicles or other signs to any steel surface. The rubber magnetic pad is designed to provide an extremely high resistance to shear forces as well as excellent pull strength. Objects can be fixed to the pad using the locking nut and bolt assembly provided and the six-pole striped magnetic field will then ensure that the sign or object is securely attached to a steel surface.
Product features
- Part No.: 1534
- Length: 79 mm, 3.11 inches
- Width: 53 mm, 2.09 inches
- Thickness: 12 mm, 0.47 inches
- Pull Force: 10 kg
- Shear Force: 3 kg
- Weight: 0.05 Kilograms
- Magnet material: Rubber covered ferrite magnets and Galvanized steel
- Shape: Rectangular
- Magnet coating: Nickel (ni-cu-ni) or Zinc (zn)
- Max. work temperature: +120℃
- Colour: Silver and Black
Details
- 79mm [3. 11"] x 53mm [2. 09"] x 12mm [0. 47"] thick with 16mm [0. 63"] diameter bolt.
- Magnetized with a six-pole striped magnetic field on the 79mm [3. 11"] x 53mm [2. 09"] magnetic pad.
- Each magnet can support a steel weight of up to 10 kg [22 lbs.] vertically from the magnetic face when in flush contact with a mild steel surface.
- Rubber coated to increase friction and reduce corrosion.
- A unique product, the 'mag pad' is ideal for fixing rooftop signs to vehicles or other signs to any steel surface. The rubber magnetic pad is designed to provide an extremely high resistance to shear forces as well as excellent pull strength. Objects can be fixed to the pad using the locking nut and bolt assembly provided and the six-pole striped magnetic field will then ensure that the sign or object is securely attached to a steel surface.
Note on adhesive force
The adhesive forces determined by us were determined at room temperature on a polished plate made of steel S235JR (ST37) with a thickness of 10 mm with the magnet pulled off vertically (1kg~10N). A deviation of up to -10% compared to the specified value is possible in exceptional cases.
Classy look and high-quality material
Thanks to the elegant look of our Magnetic Holding Pad MagPad 79 mm x 53 mm x 12mm Rubber Coated, these can be placed in a clearly visible place.
ROHS Policy
This article complies with the European RoHS directive (2002/95/EG - RoHS - Restriction of Hazardous Substances) for the restriction of the use of certain hazardous substances in electrical and electronic equipment. Not subject to registration according to REACH.
Technical Specifications:
article number | 1534 |
Form / Model | Threaded Stud Magnetic Pad MagPad - zinc plated |
Material | Ferrite magnets assembled on to a mild steel backing plate with a protective rubber coating over the magnets. |
Grade | Y30BH |
Housing | Galvanized steel |
Dimension | 79mm x 53mm x 12mm thick with 16mm diameter bolt |
Height | 12 mm |
Tolerance | + / - 0,1 mm |
Adhesion | 5 kg |
Application | A powerful magnet with Rubber coated base. Suitable for Taxi Signs, Driving Instructor Signs and Advertising Signs. |
Important notes
![Magnetic](https://www.magno.world/media/catalog/magnetic-icon.png)
RoHS Directive:
![This article complies with the European RoHS Directive (2002/95/EC - RoHS - Restriction of Hazardous Substances) on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Not subject to registration according to REACH.](https://www.magno.world/media/catalog/rohs-icon.png)
This article complies with the European RoHS Directive (2002/95/EC - RoHS - Restriction of Hazardous Substances) on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Not subject to registration according to REACH.
